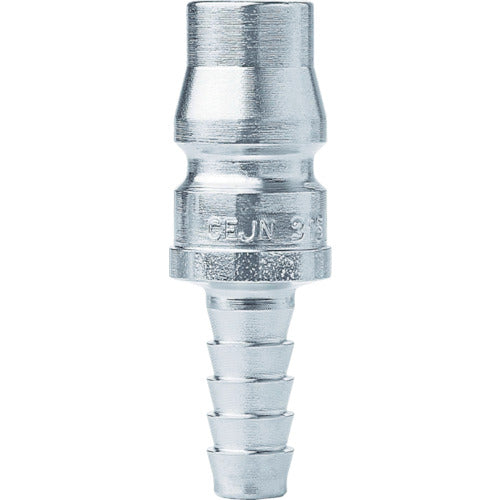

CEJN Series 315 Nipple Hose Connection 9/32 10-315-5043 1 pc

Catalog number: 10-315-5043 Features: ●Large flow rate and low pressure loss design that contributes to energy saving and work efficiency. ●Easy and reliable one-touch connection. ●Small connection with excellent operability, ergonomic design. ●Compatible with general domestic products. Specifications: ●Pressure resistance (MPa): 1.6 ●Mating hose size (inch): 9/32 ●Usable fluid: Air ●Maximum operating pressure (MPa): 1.6 ●Operating pressure: 1.6MPa ●Mating mounting size (inch): 9/32 ●Minimum burst pressure (Mpa): 14.0 ●Usable temperature range: -20 to 100°C ●Nominal diameter: 7.5mm ●Air flow rate: 1950L/min (measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa) Material/Finish: ●Body: Steel Note: ●Compatible with general domestic products.
