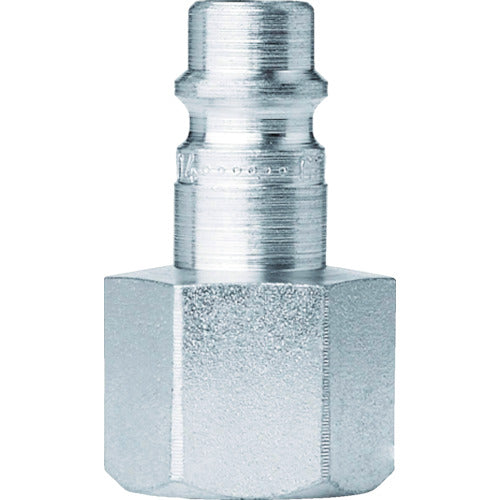

CEJN Series 320 Nipple G1/4 Female Thread 10-320-5202 1 pc

Catalog number: 10-320-5202 Features: ●Large flow rate and low pressure loss design that contributes to energy saving and work efficiency. ●Easy and reliable one-touch connection. ●Small connection with excellent operability, ergonomic design. Specifications: ●Pressure resistance (MPa): 1.6 ●Mating side mounting size: G1/4 male thread ●Usable fluid: Air ●Maximum operating pressure (MPa): 1.6 ●Operating pressure: 1.6MPa ●Minimum burst pressure (Mpa): 14.0 ●Usable temperature range: -20 to 100°C ●Nominal diameter: 7.6mm ●Air flow rate: 2250L/min (measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa) Material/Finish: ●Body: Steel Note: ●Can be connected to European standard 7.4mm including Series 320.
