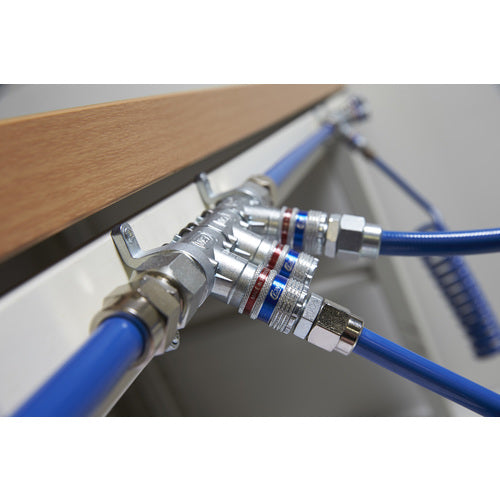

Catalog number: 19-902-9200 Features: ●Multiple pipes can be installed in a short time with minimal space. ●Swivel mechanism allows for free adjustment of outlet. ●Safe residual pressure removal function prevents accidents caused by hose recoil when disconnected. ●Expansion unit allows for increased number of branches. Specifications: ●Maximum operating pressure (MPa): 1.6 ●Number of branches: For expansion ●Inlet: G1/2 female thread ●Fluid used: Air ●Operating temperature range: -20 to 100°C ●With residual pressure removal function Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Notes: ●Can be connected to European standard 7.4 mm including series 320.
