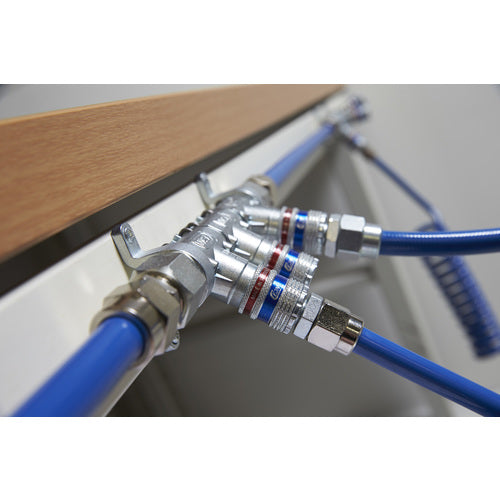

Catalog number: 19-902-9201 Features: ●Multiple pipes can be installed in a short time with a small space. ●The outlet can be freely adjusted with the swivel mechanism. ●Safe residual pressure removal function prevents accidents caused by hose recoil when separated. ●The number of branches can be increased by using the expansion unit. Specifications: ●Maximum operating pressure (MPa): 1.6 ●Number of branches: 1 ●Inlet: G1/2 female thread ●Fluid used: Air ●Operating temperature range: -20 to 100°C ●With residual pressure removal function Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Note: ●Can be connected to European standard 7.4 mm including series 320.
