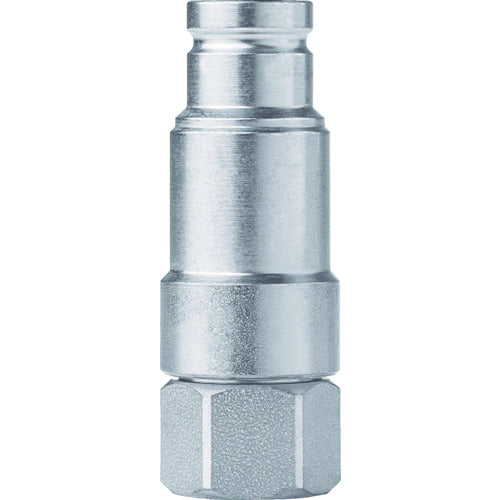

CEJN Series 364 Nipple with residual pressure relief Rc3/8 Female thread 10-364-6104 1 pc

Catalog number: 10-364-6104 Features: ●Flat face design. ●Can be connected under pressure. ●Built-in residual pressure removal function. Specifications: ●Fluid used: Hydraulic oil ●Maximum operating pressure (MPa): 40 ●Matching side mounting size: R3/8 male thread ●Minimum burst pressure (Mpa): 120 ●Operating temperature range: -30 to 100°C ●ISO16028 standard Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR)/PUR Caution: ●Do not separate under pressure.
