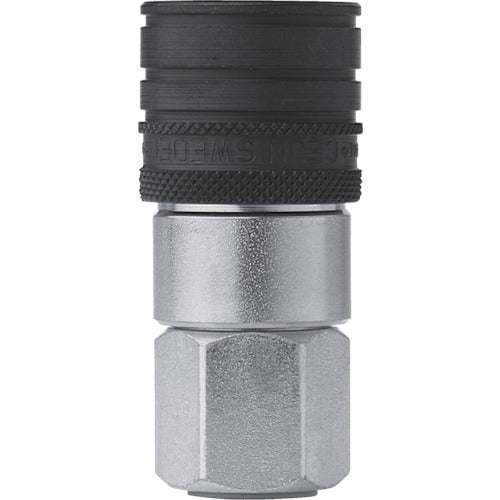

CEJN Series 365 Coupling G1/2 Female Thread 10-365-1205 1 pc

Catalog number: 10-365-1205 Features: ●Flat face design prevents oil leakage and air ingress when connecting and disconnecting. ●Safety lock mechanism included. ●Can be connected under pressure (as far as the operator can reach). Applications: ●For circuits where environmental pollution due to dripping, contamination, and air ingress are a concern. Specifications: ●Pressure resistance (MPa): 40 ●Mating side mounting size: G1/2 male thread ●Fluid used: Hydraulic oil ●Maximum operating pressure (MPa): 40 ●Operating pressure: 40 ●Nominal diameter (mm): 10 ●Minimum burst pressure (MPa): 120 ●ISO 16028 standard ●Operating temperature range: -30 to 100°C Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR), urethane resin Set contents/Accessories: ●Comes with protective cap for connecting screw Caution: ●Do not separate under pressure.
