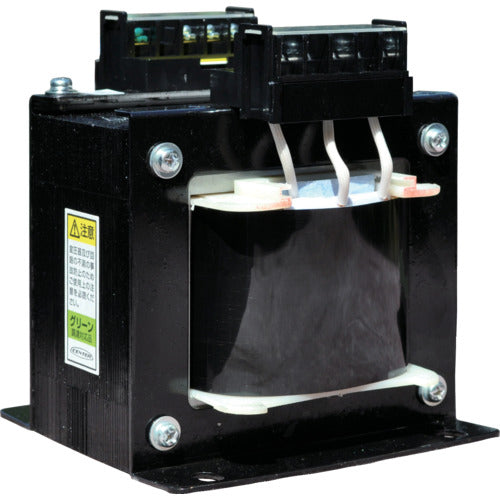

CENTER Transformer Double-wound ECL42-500N ECL42-500N 1 unit

Catalog number: ECL42-500N Features: ●Complies with JIS standards. Applications: ●Transformers for control panels, etc. Specifications: ●Input voltage (V): 440-400-380 ●Output voltage (V): 220-200 ●Maximum current (A): 2.27 ●Capacity (VA): 500 ●Width (mm): 115 ●Depth (mm): 120 ●Height (mm): 125 ●1φ dry transformer, isolation transformer
