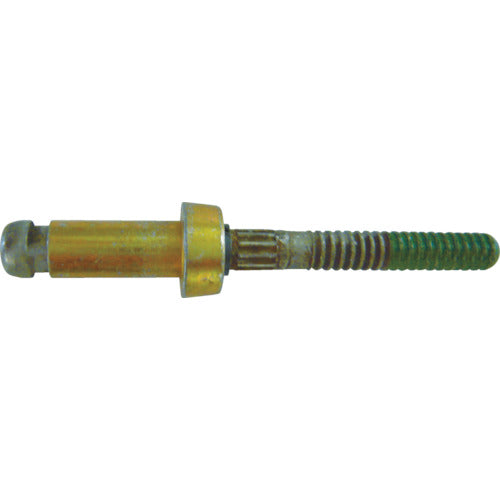

Cherry Maxibolt PROTRUDING HEAD/N t0.281-0.345 inch CR7311U-06-05 100 pcs

Catalog number: CR7311U-06-05 Features: ● Used in places where greater strength is required than with blind rivets. Applications: ● For aerospace equipment, etc. ● For the aviation industry. Specifications: ● Shear load (N): 3450 ● Tensile load (N): 2100 ● Crimping plate thickness (inch): 0.281-0.345 ● Rivet length (inch): 0.490 ● Flange diameter (inch): 0.305-0.332 ● Rivet diameter (inch): 0.198 ● Pilot hole diameter (inch): 0.199-0.202 ● Nominal diameter ● MS standard: MS90354U0605 Material/Finish: ● Sleeve (rivet part): Steel ● Stem (shaft): Steel ● Surface treatment: CAD PLATE Note: ● The traceability of this product is managed by lot number.
