CKD Air Cylinder Super Compact Cylinder Stroke 20 Rc1/8 SSD-L-32-20 1 pc

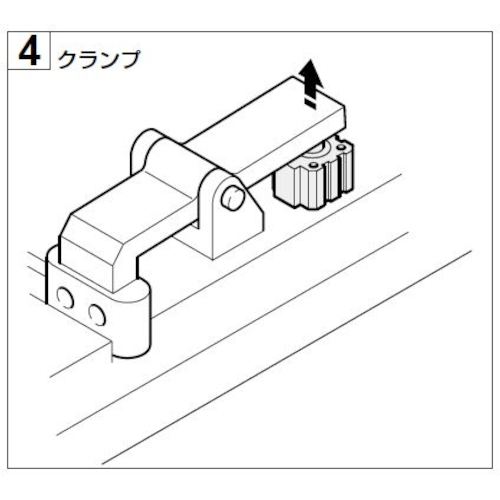

Catalog number: SSD-L-32-20 Features: ● A square, space-saving cylinder that has the cylinder switch integrated into the body and minimizes the overall length of the cylinder. ● A female thread is provided at the end of the rod, allowing for external installation (male thread type is also available). ● Ultra-small non-contact and contact switches in all series can be installed on the inner diameter of all tubes (except heat-resistant types). ● Direct installation is possible with a hexagon socket bolt (both through-bolt and screw-in installation are possible). Applications: ● For robot hands, clamping, lifting, positioning, press-fitting, etc. Specifications: ● Tube inner diameter (mm): 32 ● Stroke (mm): 20 ● Piping port diameter: Rc1/8 ● Mounting support type: Direct mounting ● Tube inner diameter (Φ): 32 ● Thread diameter: M8 depth 13 ● Operating pressure range (MPa): 0.1 to 1.0 ● Connection diameter: Rc1/8 ● Compatible cylinder inner diameter (mm): 32 ● Double-acting single-rod type ● Cushion: None ● Cylinder switch magnet: Yes (cylinder switch can be installed later) ● Fluid used: Compressed air ● Ambient temperature: -10 to 60°C (no freezing) Caution: ● Take care not to apply lateral load to the cylinder.
