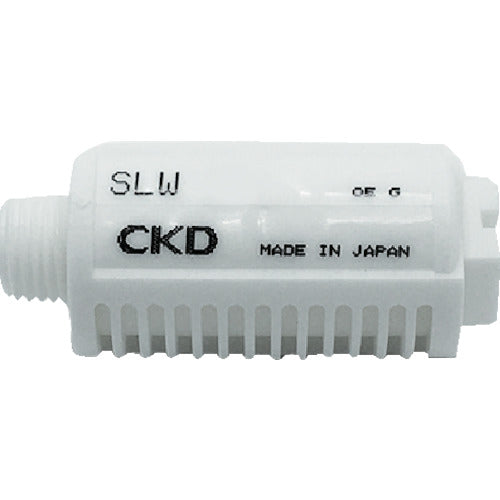

CKD Silencer Resin Body Type SLW-10L 1 pc

Catalog number: SLW-10L Features: ●A device that reduces exhaust noise generated by exhaust air. ●Small diameter, large flow rate type with a noise reduction effect of 30 dB or more. Applications: ●For silencing exhaust air from the exhaust port of a directional control valve. Specifications: ● Sound reduction (dB): 30 or more ● Effective cross-sectional area (mm2): 60 ● Connection diameter: R3/8 ● Overall length (mm): 68.2 ● Operating pressure (MPa): 0 to 1.0 ● Operating temperature (℃): -10 to 60 (but do not freeze) ● Fluid used: Compressed air ● Suitable cylinder tube inner diameter (φ): 32 to 80 ● Fluid used: Compressed air ● Noise reduction effect: 30dB or more ● Flow rate: 4000L/min (ANR) (effective cross-sectional area: 60mm2) ● Suitable cylinder tube inner diameter: φ50 to 100mm (reference) ● Fluid temperature: 5 to 60℃ ● Operating pressure: 0 to 1.0MPa Material/Finish: ● Body: Polyamide resin (flame-retardant resin) *Equivalent to UL94 standard VO ● Element: PP sintered resin Caution: ● Ensure that the fluid temperature and ambient temperature are not frozen. Depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ●The flow rate is an atmospheric pressure equivalent value at a pressure of 0.5 MPa.
