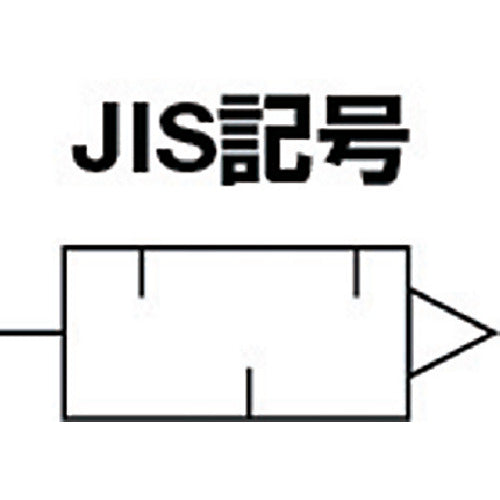

CKD Silencer Resin Body Type SLW-20S 1 pc

Catalog number: SLW-20S Features: ●A device that reduces exhaust noise generated by exhaust air. ●Compact type with a noise reduction effect of 30 dB or more. Applications: ●For silencing exhaust air from the exhaust port of a directional control valve. Specifications: ● Sound reduction (dB): 30 or more ● Effective cross-sectional area (mm2): 90 ● Connection diameter: R3/4 ● Overall length (mm): 75.4 ● Operating pressure (MPa): 0 to 1.0 ● Operating temperature (℃): -10 to 60 (but do not freeze) ● Fluid used: Compressed air ● Width (mm): 28 ● Fluid temperature (℃): 5 to 60 ● Ambient temperature (℃): -10 to 60 ● Fluid used: Compressed air ● Sound reduction effect: 30dB or more ● Flow rate: 6000L/min (ANR) (effective cross-sectional area: 90mm2) ● Applicable cylinder tube inner diameter: φ100 to 200mm (reference) Material/Finish: ● Body: PP SLW-6S, 8S/SLW-20S are polyamide resin ● Element: PP sintered resin Note: ● The fluid temperature and ambient temperature must not freeze, but depending on the air quality (dew point), freezing may occur due to adiabatic expansion. ● The flow rate is the atmospheric pressure converted value at a pressure of 0.5 MPa.
