CKD Speed ​​Controller In-line Type with One-touch Fitting SCL2-10-H1010 1 pc

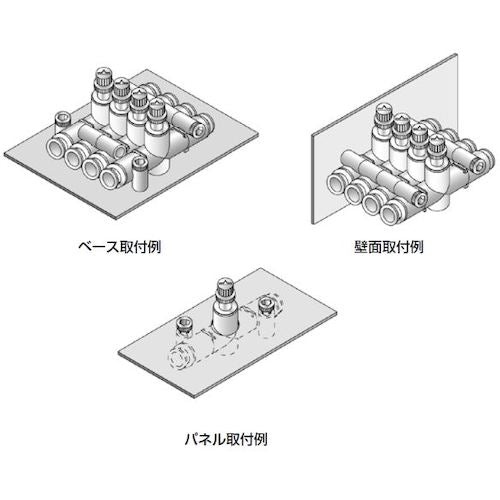

Catalog number: SCL2-10-H1010 Features: ●In-line speed controller convenient for remote and centralized control of actuators. ●The mounting part rotates 360°, so mounting and installation methods can be freely selected, such as bottom, side, and panel mounting, and mounting brackets are not required. ●Air fiber specifications and large diameter types have been added, and the applicable tube size has been expanded to Φ1.8 to Φ12, all at once enriching the variations. ●Although compact, the maximum flow rate is large, and the selection range of cylinder size and speed control has been expanded. ●Ozone-resistant material is used for the check packing, and flame retardant (UL94 standard VO equivalent) is used for the resin part as standard. Applications: ●For speed adjustment of pneumatic cylinders. Specifications: ● Suitable tube outer diameter (mm): 10 ● Operating pressure (MPa): 0.1 to 1.0 ● Operating fluid: Compressed air ● Fluid temperature (℃): 5 to 60 (but do not freeze) ● Pressure resistance (MPa): 1.5 ● Ambient temperature (℃): 0 to 60 ● Body size: 3/8 thread equivalent ● Connection type: In-line ● Flow type: Standard flow ● Free flow flow rate: 130 L/min (effective cross-sectional area: 1.9 [[MM2]]) ● Controlled flow flow rate: 130 L/min (effective cross-sectional area: 1.9 [[MM2]]) ● Reference applicable cylinder tube inner diameter: φ4 to φ25 mm ● Needle rotation number: 12 times ● Meter-in type Material/Finish: ● Resin part: Polybutylene terephthalate, polyetherimide ● Metal part: Brass, stainless steel ● Gasket part: Nitrile rubber, hydrogenated nitrile rubber Caution: ● Fluid temperature/ambient temperature: Do not freeze. *Please note that depending on the air quality (dew point), adiabatic expansion may cause freezing. *Flow rate is the atmospheric pressure converted value at a pressure of 0.5 MPa. *All brass parts are electroless nickel plated.
