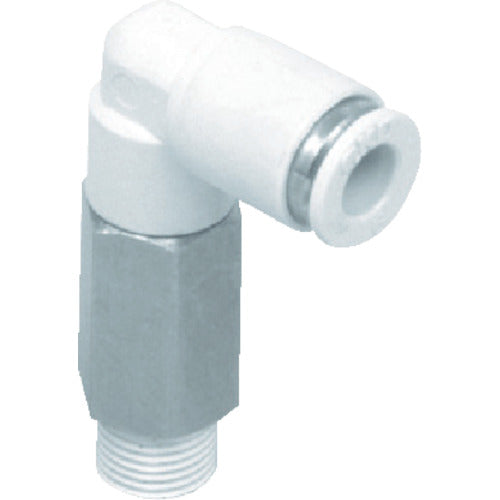

CKD Tube Fitting New Joint Elbow Type Compatible Tube Outer Diameter 10mm Connection Port Size R3/8 GWL10-10-L 1 pc

Catalog number: GWL10-10-L Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●One-way long elbow tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 10 ●Connection port size: R3/8 ●Hexagonal width (mm): 17 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
