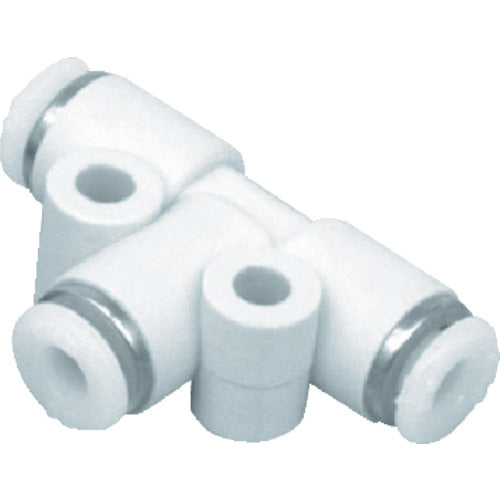

CKD Tube Fittings New Joint Mini Type Double Ended Tee Type Compatible Tube Outer Diameter 3.2mm Connection Port Size M5 x 0.8 GWJT3-M5 1 Piece

Catalog number: GWJT3-M5 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant coating on threaded parts as standard Applications: ●Straight tube with one end + male thread Specifications: ●Applicable tube outer diameter D (mm): 3.2 ●Connection port size: M5 x 0.8 ●Hexagonal width (mm): 8 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
