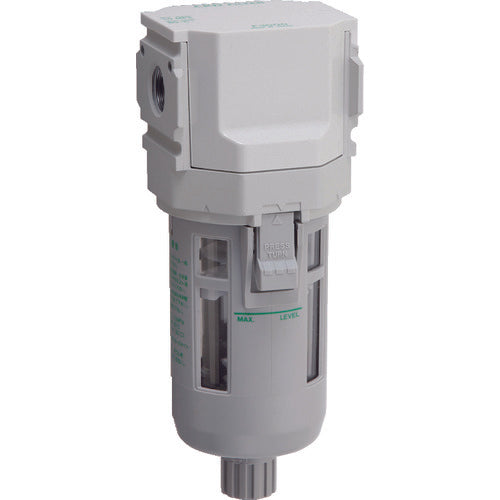

CKD Drain Separator FX1011-8-W 1 piece

Catalog number: FX1011-8-W Features: ●Lightweight and compact drain separator. ●The cyclone effect causes water droplets in the compressed air to hit the inner wall of the bowl, collecting and enlarging them, removing more than 99% of the moisture. ●Since there is no element, maintenance is easy. Applications: ●For simple water removal from air piping. Specifications: ●Operating pressure (MPa): 0.1 to 1.0 ●Connection port size: Rc1/4 ●Width (mm): 80 ●Depth (mm): 79 ●Height (mm): 193.5 ●Drain discharge method: With manual drain cock ●Fluid used: Compressed air ●Fluid temperature (℃): 5 to 60 ●Maximum processing flow rate (［［M3］］/min): 1.8 ●Fluid used: Compressed air ●Fluid temperature: 5 to 60℃ ●Compatible compressor: 0.75 to 37kW
