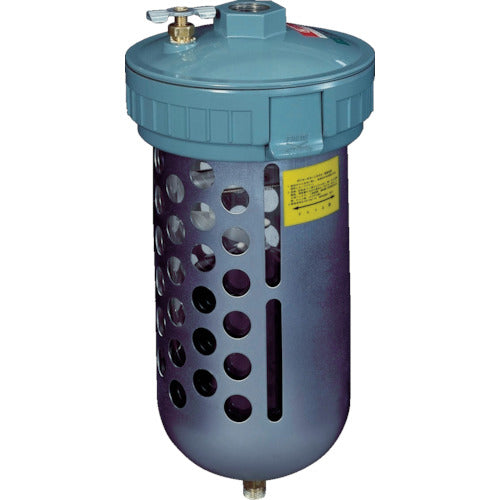

CKD drain discharger 5100-4C 1 piece

Catalog number: 5100-4C Features: ● Automatically and reliably discharges drainage accumulated in pneumatic circuits. Specifications: ● Operating pressure (MPa): 0.1 to 1.0 ● Drainage discharge amount (cm3/time): 170 ● Connection diameter: Rc1/2 ● Width (mm): 118 ● Depth (mm): 118 ● Height (mm): 217 ● Fluid used: Air ● Fluid temperature (℃): 5 to 65 ● Overall length (mm): 217 ● Drainage discharge method: Float type auto drain ● Connection targets: General piping, compressors, receiver tanks, aftercoolers, air dryers, etc.
