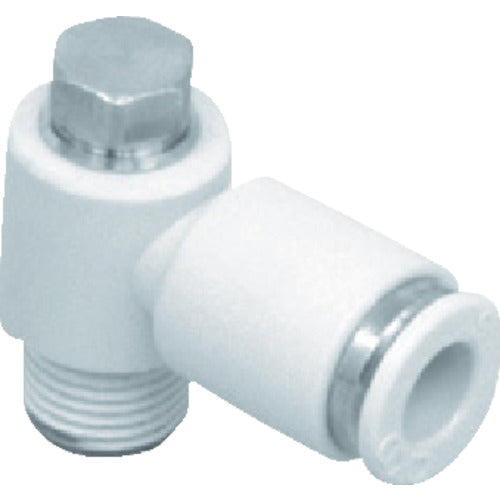

CKD New joint elbow type Applicable tube outer diameter: 10mm Connection diameter R3/8 GWL10-10-T 1 piece

Catalog number: GWL10-10-T Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threads as standard Application: ●One-way turn elbow tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 10 ●Connection port size: R3/8 ●Hexagonal width (mm): 14 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100kPa to 1.0MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100kPa to 1.0MPa ●Fluid temperature (℃): -10 to 60℃ (no freezing) ●Y-shaped plug + tube Material/Finish: ●Body: Brass (electroless nickel plating) + Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
