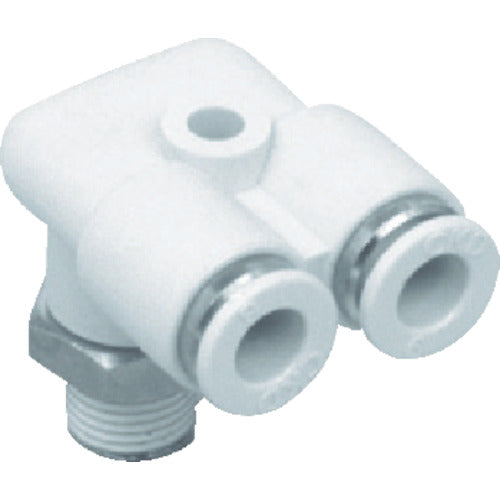

CKD New Joint FY Type Compatible Tube Outer Diameter: 6mm Connection Port Size R1/8 GWFY6-6 1 pc

Catalog number: GWFY6-6 Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel-plated brass + sealant applied to threaded parts as standard Applications: ●2-way tube branch + male thread Specifications: ●Compatible tube outer diameter D (mm): 6 x 6 ●Connection port size: R1/8 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
