CKD(株)

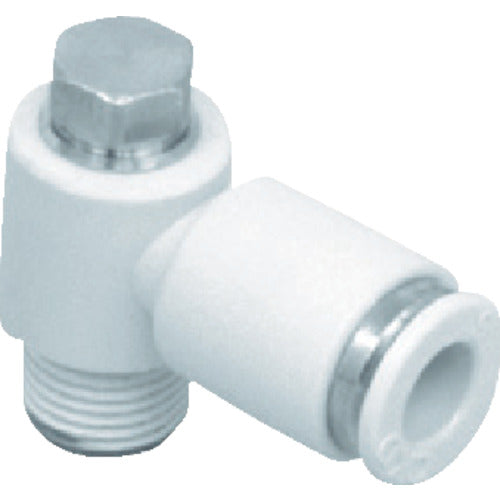

CKD New Joint Elbow Type Applicable Tube Outer Diameter: 6mm Connection Port Size M5 GWL6-M5-T 1 pc
CKD New Joint Elbow Type Applicable Tube Outer Diameter: 6mm Connection Port Size M5 GWL6-M5-T 1 pc
Regular price
¥355
Regular price
Sale price
¥355
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: GWL6-M5-T Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) standard + nickel plating on brass + sealant applied to threaded parts as standard Applications: ●One-way turn elbow tube + male thread Specifications: ●Compatible tube outer diameter D (mm): 6 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 8 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Compressed air ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
