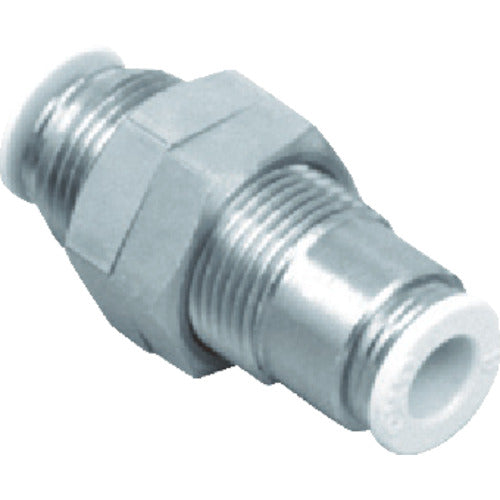

CKD New Joint Straight Type Applicable Tube Outer Diameter: 8mm GWS8-0-X 1 pc

Catalog number: GWS8-0-X Features: ●Flame-retardant resin (equivalent to UL-94 standard V-0) as standard + nickel plating on brass + sealant applied to threads as standard Applications: ●Bulkhead (partition wall) Specifications: ●Compatible tube outer diameter (mm): 8 ●Connection port size: φ8 one-touch fitting ●Hexagonal face size (mm): 19 ●Operating temperature range (℃): -10 to 60 (no freezing) ●Total length (mm): 39 ●Operating pressure: -100 kPa to 1.0 MPa ●Operating fluid: Air ●Compatible tube outer diameter D (mm): 8 x 8 ●Operating pressure range: -100 kPa to 1.0 MPa ●Fluid temperature: -10 to 60℃ (no freezing) ●Y-shaped plug + tube Materials/Finish: ●Body: Brass (electroless nickel plating) + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber
