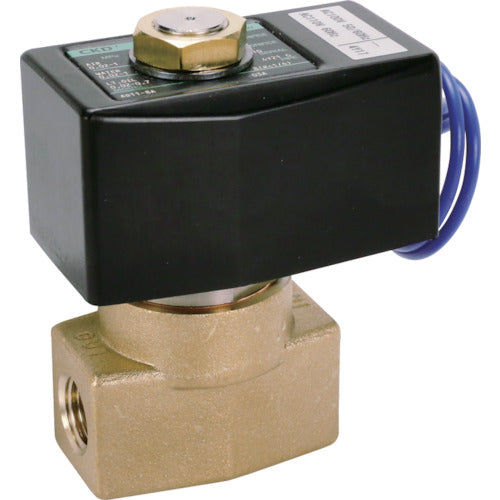

CKD Pilot operated 2-port solenoid valve (Multi-rex valve) AD11-10A-02C-AC100V 1 piece

Catalog number: AD11-10A-02C-AC100V Features: ●Multilex valve series that controls many types of fluids, including water, air, kerosene, and oil. Applications: ●For ON/OFF control of water, air, kerosene, and oil fluids. Specifications: ● Effective cross-sectional area (mm2): 50.0 ● Connection diameter: Rc3/8 ● Operation method: diaphragm drive type ● Power supply (V): AC100 ● Number of ports: 2 ● Fluid used: air, water, kerosene, oil (up to 60°C), etc. ● Fluid temperature (°C): -10 to 60 (no freezing) ● Sonic conductance (C [dm3/(S·bar)]): 10 ● Coil housing: Grommet lead wire ● Operating pressure difference (MPa): 0.02 to 1.0 (air, water, kerosene), 0.02 to 0.7 (oil) ● Fluid temperature: -10 to 60°C (no freezing) ● Operating pressure: 0.02 to 1.0 MPa (8A to 10A), 0.02 to 0.7 MPa (15A to 25A) ● Lead wire: 300 mm Material/Finish: Body: Bronze; Seal material: Nitrile rubber
