CKD Pilot operated 5-port valve Select valve 4F120-08-DC24V 1 unit

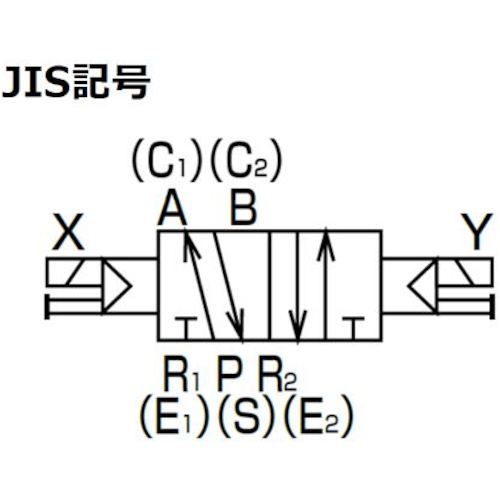

Catalog number: 4F120-08-DC24V Features: ●Double solenoid type 5-port valve. ●Direct piping. ●Applicable to a wide range of fields. ●Soft spool system allows long-term use, low-frequency use, and is resistant to miscellaneous air. ●Concentrated exhaust from the breathing hole and PE port prevents malfunction due to clogging in dusty environments and allows use in adverse environments. Applications: ●For driving cylinders of Φ20 to Φ25 Specifications: ●Connection diameter: Rp1/4 ●Power supply (V): DC24 ●Operating pressure (MPa): 0.1 to 1 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 ●Sonic conductance (C [dm3/(S・bar)]): 2.0 ●Operating fluid: Compressed air ●Fluid temperature: 5 to 60℃ Material/Finish: ●Body: Aluminum die-cast
