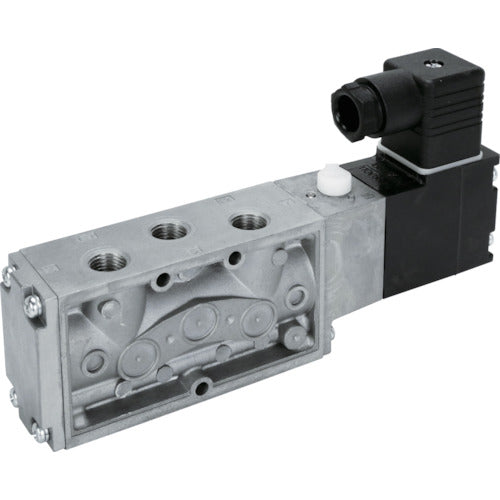

CKD Pilot operated 5-port valve Select valve 4F210-08-DC24V 1 piece

Catalog number: 4F210-08-DC24V Features: ● Single solenoid type 5-port valve. ● Direct piping. ● Suitable for a wide range of fields. ● Uses a soft spool system, allowing long-term use, low-frequency use, and resistance to miscellaneous air. ● Uses concentrated exhaust from the breathing hole and PE port, so there is no malfunction due to clogging in dusty environments, and it can be used in adverse environments. Uses: ●For driving cylinders of Φ40 to 80 Specifications: ●Connection diameter: Rp1/4 ●Power supply (V): DC24 ●Operating pressure (MPa): 0.1 to 1 ●Fluid used: Compressed air ●Fluid temperature (℃): 5 to 60 ●Sonic conductance (C [dm3/(S・bar)]): 3.0 ●Wire connection: DIN terminal box (Pg11) (4F1 series only: Small terminal box without lead wire) ●Fluid used: Compressed air ●Maximum operating pressure: 1.0MPa ●Ambient temperature: -10 to 60℃ (no freezing) ●Fluid temperature: 5 to 60℃ Materials/Finish: ●Body: Aluminum die-cast, seal assembly: Urethane rubber
