CKD Pilot operated 5 port valve 4GA/4GB series 4GB310R-08-3 1 unit

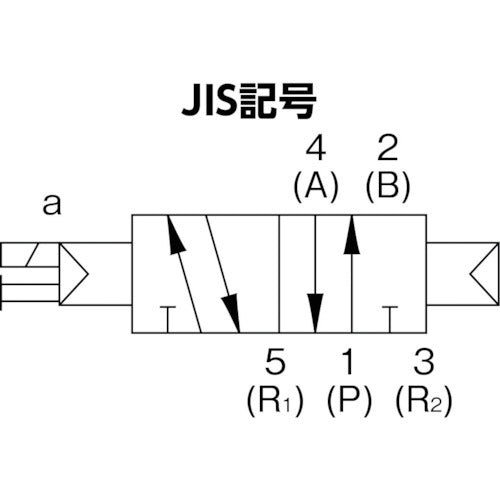

Catalog number: 4GB310R-08-3 Features: ● Single solenoid type 5-port valve. ● Subplate type. ● With detailed support, safety is enhanced, and a protective cover is standardly equipped on the manual operation device. ● Improved reliability. Durability of over 100 million times (single solenoid, under manufacturer's specified conditions) ● Improved ease of use, with a tool-free manual operation device. ● In the case of E-type connector lead wire, the wiring connector can be shared between top and side wiring, and can be changed during installation. ● For maintenance purposes, a stand-alone valve for mounting on a base is also available. (Example: 4GB * 19R series) ● Equipped with safety functions, improving reliability and ease of use Applications: ● Switching the direction (flow path) of air pressure supplied to air cylinders and other actuators in pneumatic circuits Specifications: Effective cross-sectional area (mm2): 21.5 Connection port size: Rc1/4 Operation method: Pilot-operated soft spool valve Power supply (V): DC24 Number of ports: 5 Operating pressure (MPa): 0.2-0.7 Fluid used: Compressed air Fluid temperature (℃): 5-55 Sonic conductance (C [dm3/S・bar)]: 4.3 Width (mm): 41 Height (mm): 61 Length (mm): 99 Sonic conductance (C [dm3/S・bar)]: 4.3 Fluid used: Air Fluid temperature: 5-55℃ Ambient temperature: -5-55℃ (no freezing) Operating pressure: 0.2-0.7MPa Wire connection: Grommet lead wire Grommet lead wire (300mm)
