CKD Pilot-operated explosion-proof two-port valve AD series (for air and water) AP11E4-25A-03T-AC200V 1 unit

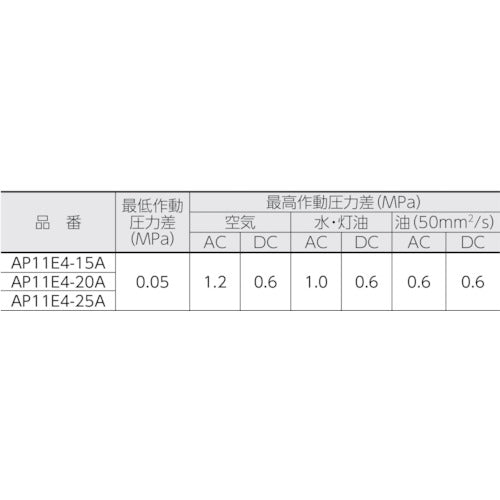

Catalog number: AP11E4-25A-03T-AC200V Features: ● Explosion-proof specification of Multilex valve for controlling various types of fluids such as water, air, gas, and oil. Specifications: ● Effective cross-sectional area (mm2): 231 ● Connection diameter: Rc1 ● Operation method: Piston drive type ● Power supply (V): AC200 ● Number of ports: 2 ● Operating pressure (MPa): 0.05 to 1.2 (air), 0.05 to 1.0 (water, kerosene), 0.05 to 0.6 (oil) ● Fluid used: air, water, kerosene, oil ● Fluid temperature (℃): -10 to 60 (no freezing) ● Fluid temperature: -10 to 60℃ (no freezing) ● Operating pressure: 0.05 to 2MPa ● Pressure-resistant explosion-proof structure d2G4 (explosion class 2, ignition degree G4) ● NC (open when energized) ● Piston drive type
