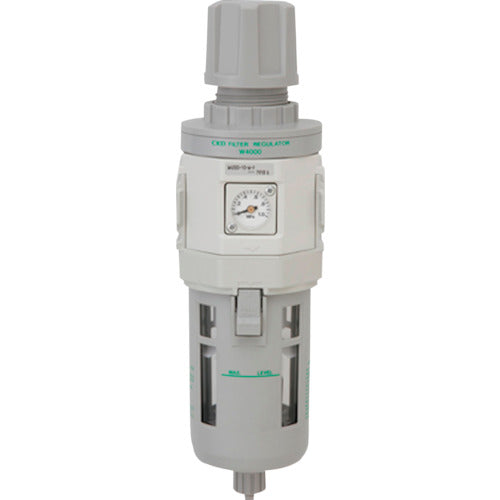

Catalog number: W4000-10-W Features: ● Air filter and regulator are integrated into a compact unit. ● Removes drain and dust from the air and adjusts pressure. ● The element used has a unique chemical fiber structure that is rough on the surface and becomes finer toward the inside. It greatly reduces clogging and significantly increases the element life. Applications: ● Removes drain and dust from the air and adjusts pressure. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 1 ● Processed air flow rate (［［M3］］/min): 4.35 ● Set pressure (MPa): 0.05 to 0.85 ● Connection port size: Rc3/8 ● Overall length (mm): 281.0 ● Overall width (mm): 80 ● Used fluid: Air ● Used fluid: Air ● Fluid temperature (℃): 5 to 60℃ ● Drain discharge method: Manual ● With pressure gauge
