CKD Small check valve with one-touch fitting CHL-M54-A 1 piece

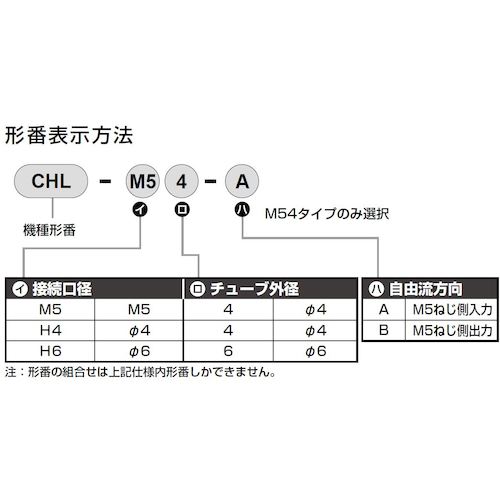

Catalog number: CHL-M54-A Features: ● Compact, space-saving in-line type that can be used to maintain a vacuum and at low pressure. ● Built-in one-touch fittings allow for compact piping and improved workability. ● Low cracking pressure allows for use to maintain a vacuum and at low pressure. Applications: ● For preventing backflow of compressed air. Specifications: ● Effective cross-sectional area (mm2): 2.6 ● Connection diameter: M5 ● Compatible tube outer diameter D (mm): 4 ● Compatible tube outer diameter (mm): 4 ● Total length (mm): 30 ● Operating pressure (MPa): 0.03 to 1.0 ● Operating temperature range (℃): 0 to 60 (but do not freeze) ● Fluid used: Compressed air ● Fluid temperature (℃): 0 to 60 ● Pressure resistance (MPa): 1.5 ● Ambient temperature range (℃): 0 to 60 ● Dimensions (mm): φ9 x 30 ● Free flow direction: A (M5 thread side input) ● Connection type: In-line ● Flow rate: 170 L/min (effective cross-sectional area: 2.6 mm2) ● Cracking pressure: 0.03 MPa ● Negative pressure range: -30 to -100 kPa Material/Finish: ● Body: Brass (electroless nickel plated) Note: ● The flow rate is the atmospheric pressure equivalent value at a pressure of 0.5 MPa.
