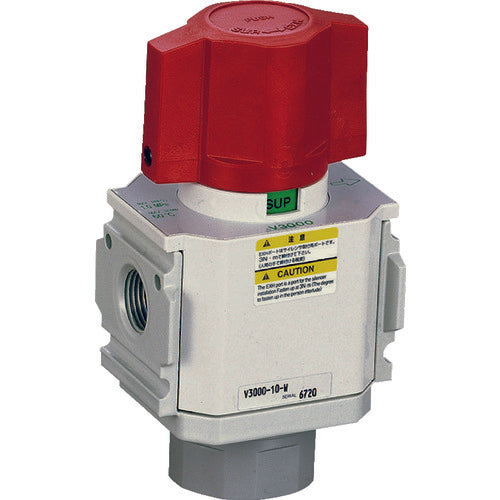

CKD Residual Pressure Release Valve White Series V3000-15-W 1 pc

Catalogue number: V3000-15-W Features: ● Shuts off the supply of compressed air and exhausts residual pressure. ● Prevents residual pressure accidents during equipment maintenance work. ● Exhaust operation is manual, one action. Specifications: ● Effective cross-sectional area (mm2): IN/OUT: 85, OUT/EXH: 50 ● Connection size: Rc1/2 ● Operating pressure (MPa): 0-1.0 ● Operating temperature range (℃): 5-60 ● Fluid used: Air ● Width (mm): 63 ● Depth (mm): 50 ● Height (mm): 117.5 ● Fluid used: Air ● Maximum operating pressure: 1.0MPa ● Fluid temperature: 5-60℃ ● Connection size Rc1/4 Materials/Finish: ● Body: Aluminum alloy die-cast ● Knob: Polyacetal resin ● O-ring: Nitrile rubber Caution: ● Body: Aluminum alloy die-cast ● Knob: Polyacetal resin ● O-ring: Nitrile rubber
