CKD Direct acting 2-port solenoid valve (Multi-rex valve) AB31-02-6-03A-DC24V 1 unit

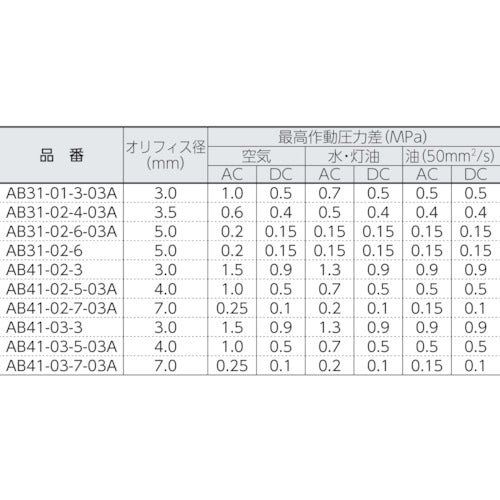

Catalog number: AB31-02-6-03A-DC24V Features: ●Multilex valve series that controls many types of fluids, including water, air, vacuum, and oil. Uses: ●For ON/OFF control of many types of fluids, including water, air, vacuum, and oil. Specifications: ●Effective cross-sectional area (mm2): 15 ●Connection diameter: Rc1/4 ●Operation method: Direct-acting poppet structure ●Power supply (V): DC24 ●Number of ports: 2 ●Fluids used: air, low vacuum, water, kerosene (up to 60°C), etc. ●Fluid temperature (°C): -10 to 60 ●Sonic conductance (C [dm3/(S·bar)]): 3.0 ●Maximum operating pressure difference (MPa) air: 0.15 ●Maximum operating pressure difference (MPa) water: 0.15 ●Operating pressure difference (MPa): 0 to 0.15 (air, water, kerosene, oil) ●Direct-acting, NC (close when energized) type ●Lead wire: 300 mm Material/Finish: ●Body: Brass ●Sealing material: Nitrile rubber
