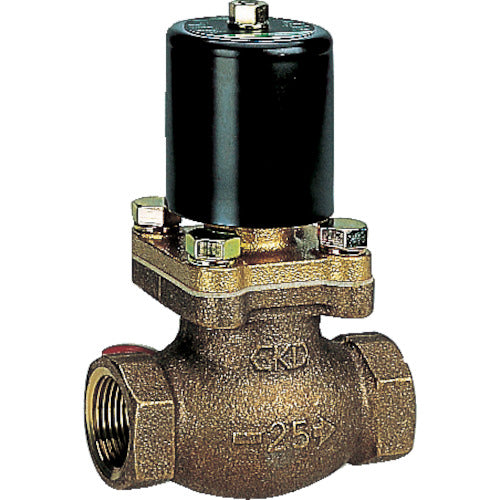

Catalog number: PVS-25A-210-AC200V Features: ● Solenoid valve for general fluids. ● A wide range of models are available in terms of fluids, pressures, and calibers. Applications: ● For air, water, and steam. Specifications: ● Effective cross-sectional area (mm2): 178 ● Connection caliber: Rc1 ● Operation method: Electric ● Power supply (V): AC200 ● Number of ports: 2 ● Operating pressure (MPa): 0.05 to 1 ● Fluids used: steam, water, air ● Fluid temperature (℃): 5 to 185 ● Cv value: 10.0 ● Orifice diameter (mm): 25 ● Operating pressure difference (MPa): 0.05 to 1 ● Fluid temperature: 5 to 185℃ ● Operating pressure difference: 0.05 to 1MPa
