CKD Solenoid Valve 4K Series Pilot Type 5 Port Valve Select Valve Connection Size Rc3/8 4KB310-10-DC24V 1 Unit

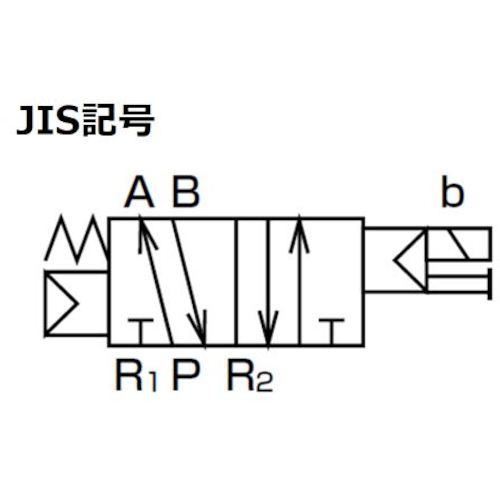

Catalog number: 4KB310-10-DC24V Features: ● Single solenoid type 5-port valve. ● Subplate piping. ● Improved wear resistance and sliding performance of the sliding parts have significantly increased the life span and stabilized responsiveness. Applications: ● For driving cylinders with diameters of Φ63 to Φ100 Specifications: ● Connection size: Rc3/8 ● Power supply (V): DC24 ● Fluid used: Compressed air ● Fluid temperature (℃): 5 to 50 (no freezing) ● Sonic conductance (C [dm3/(S・bar)]): 6.3 ● Operating pressure: 0.15 to 0.7 MPa ● Wire connection (mm): Grommet lead wire 300 Materials/Finish: ● Body: Aluminum die-cast, Spool packing: Nitrile rubber
