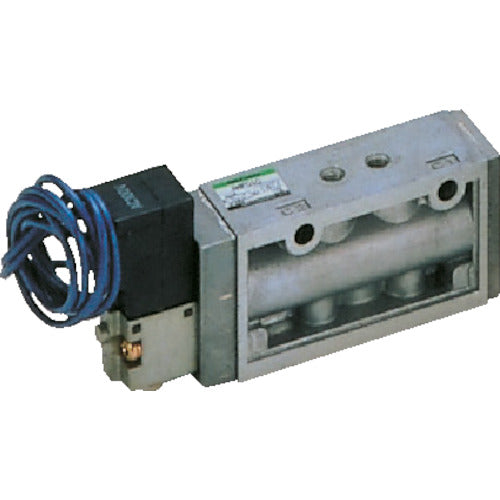

CKD 4F Series Pilot Operated 5-Port Valve Select Valve A4F010-06-AC200V 1 Unit

Catalog number: A4F010-06-AC200V Features: ● Single solenoid type 5-port valve. ● Direct piping. ● Suitable for a wide range of fields. ● Uses a soft spool system, allowing long-term use, low-frequency use, and resistance to miscellaneous air. Applications: ● For driving cylinders up to Φ20 Specifications: ● Connection diameter: Rc1/8 ● Operating pressure (MPa): 0.15 to 1 ● Sonic conductance (C [dm3/(S bar)]): 0.74 Material/Finish: ● Body: Aluminum die-cast, Seal assembly: Urethane rubber
