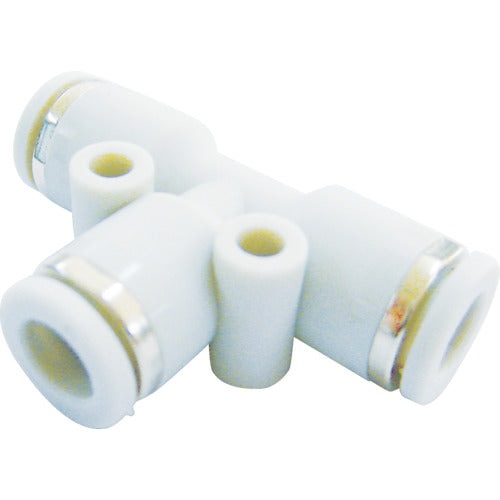

CONVUM Tube Fittings Different Diameter Union Tee Compatible Tube Outer Diameter D1: 8 x 8 mm Compatible Tube Outer Diameter D2: 6 mm WPUG08-06 1 pc

Catalog number: WPUG08-06 Features: ● PBT (polybutylene terephthalate) resin is used as standard, preventing fires from spreading to fittings in environments where welding sparks such as spatters are present. Specifications: ● Operating pressure: 0.9MPa ● Fluid used: Air ● Fluid temperature (℃): 0 to 60℃ ● Compatible tube outer diameter D1 (mm): 8 x 8 ● Compatible tube outer diameter D2 (mm): 6 Material/Finish: ● Body: Polyamide (PA+F/G)
