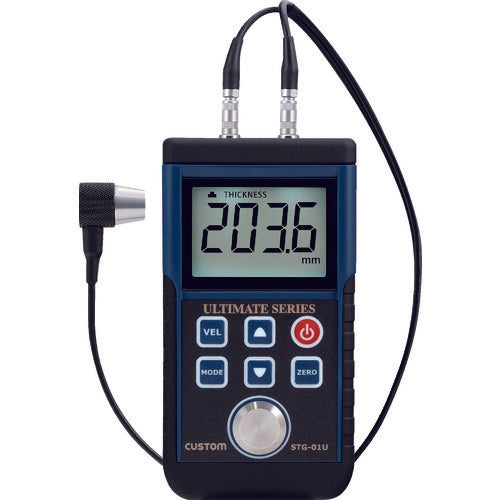

CUSTOM Ultrasonic thickness gauge STG-01U 1 unit

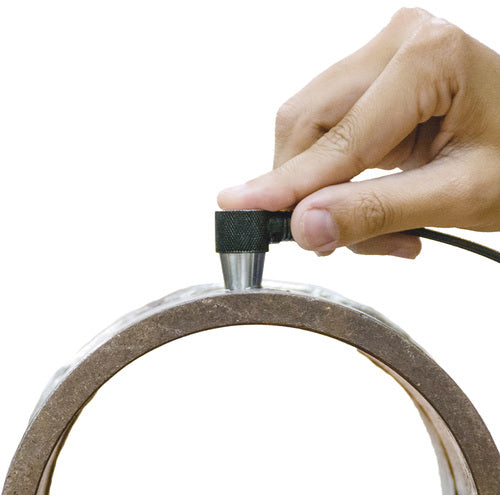

Catalog number: STG-01U Features: ●By setting the sound speed, you can measure the thickness of various materials from metals to non-metals (glass, resin, etc.). (Example: Steel 1.2 to 220 mm) ●Equipped with a backlit LCD that is convenient for use in dark places. ●Equipped with auto power off to reduce battery consumption. Applications: ●For measuring the thickness of objects to be measured. ●As a non-destructive inspection device, it can be used to identify corrosion and defects in objects to be measured. Specifications: ● Measurement range (mm): 1.2 to 220 (iron) ● Resolution (mm): 0.1 ● Measurement range: 1.2 to 220 mm (steel) ● Resolution: 0.1 mm ● Type: Ultrasonic pulse reflection type ● Memory function: Up to 10 items ● Power supply (V): 3 AA batteries (sold separately) ● Width (mm): 72 ● Depth (mm): 36 ● Height (mm): 135 ● Power supply: 3 AA batteries (sold separately) ● Measurement method: Ultrasonic pulse reflection type ● Sampling: Approximately 2 times / second ● Minimum pipe size: Outer diameter: φ20 mm, wall thickness: 3 mm (steel) ● Accuracy: ± (1% rdg + 0.1) mm ● Sound speed setting range: 1000 to 9999 m / s ● Probe: Cable integrated type Total length: Approximately 950 mm, Weight: Approximately 46 g ● Operating frequency: 5 MHz ● Outer diameter (contact surface diameter): φ 18mm (φ10 mm) Material/Finish: ●ABS Set Contents/Accessories: ●Instruction Manual ●Probe ●Couplant ●Test Piece ●Storage Case ●3 AA Batteries (for testing) Note: ●The included batteries are samples. ●The battery life may be shorter than that of regular commercially available batteries.
