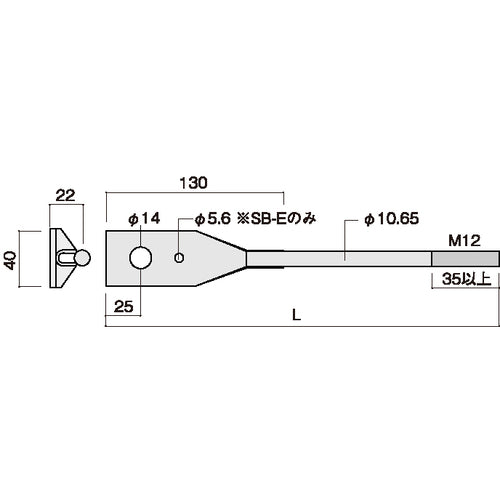

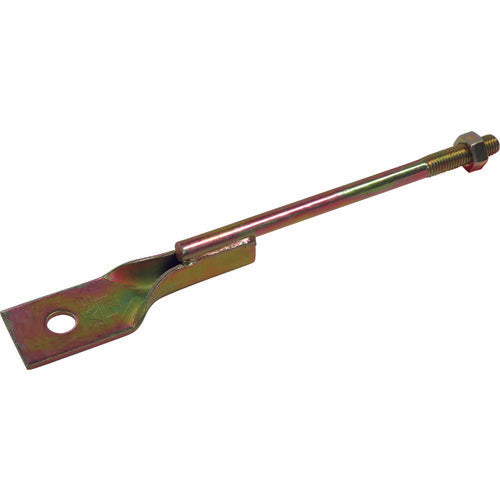

Catalogue number: 10177117 Features: *Z-marked hardware used to connect small beams and eaves beams, eaves beams and columns, beams and columns, and girder and through columns. Applications: *For connecting roof beams and eaves beams, eaves beams and columns, girder and floor beams, and girder and through columns. Specifications: *Notification No. 1460 "ni" *Screw designation (mm): M12 *Length L (mm): 280 *No nail holes Materials/Finish: *Plate: JIS G 3131 (Hot-rolled mild steel plate and steel strip) SPHC *Bolt: JIS B 1180 (Carbon steel satisfying strength classification 4.6) *Surface treatment JIS H 8610 (Electrolytic zinc plating) Ep-Fe/Zn8/CM2 Set contents/Accessories: *M12 hexagon nut 1 piece/piece
