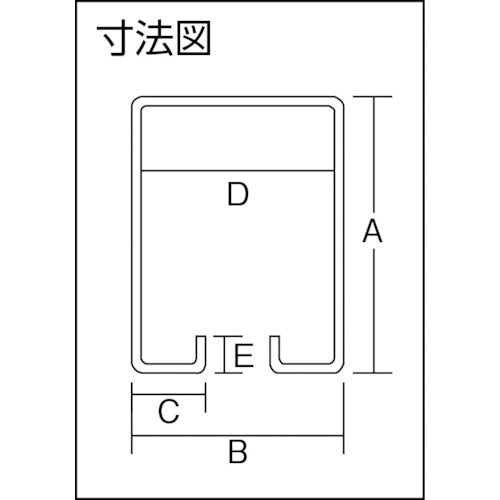

Catalogue number: 3-HR3640 Usage: ●A track for a hoist car to run on the inside. ●Used for suspending and transporting hanger carts. Specifications: ●Load capacity (kg): 75 ●Total length (mm): 3640 ●Plate thickness (mm): 1.6 ●A (mm): 57.0 ●B (mm): 44.0 ●C (mm): 14.0 ●D (mm): 40.8 ●E (mm): 6.5 Material/Finish: ●Steel ●Powder coating finish Note: ●The load capacity is the value when brackets are installed at 450 mm intervals.
