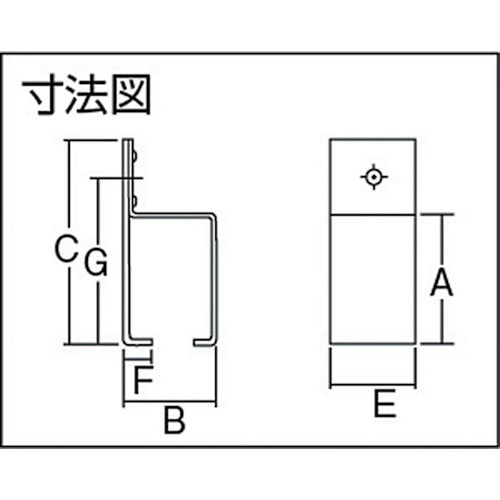

Catalog number: 5-SB Usage: ● As a bracket for attaching a hanger rail to the wall of a structure. Specifications: ● Product name: Horizontal bracket series ● Suitable rail: No. 5 ● A (mm): 110 ● B (mm): 82 ● C (mm): 170 ● Hole diameter (mm): 17.0 ● G (mm): 140 ● F (mm): 25 ● E (mm): 65 ● Plate thickness (mm): 6 Material/Finish: ● Steel
