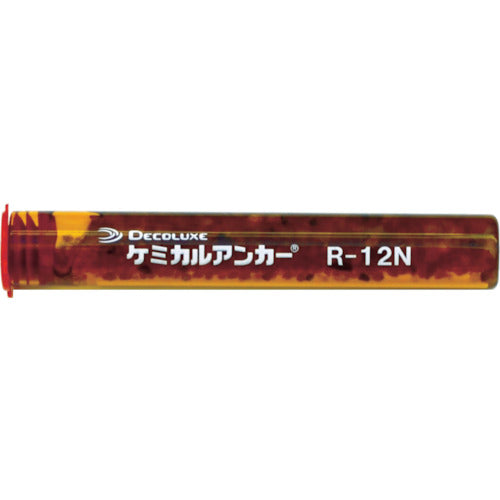

DECOLUXE Chemical Anchor R Type (-N) (Rotational and Rotary Impact Type) Drilling Depth 100 R-12N 1 Piece

Catalogue number: R-12N Features: * An adhesive anchor that is both healthy and environmentally friendly, as it does not use any of the 13 VOCs that can cause sick house syndrome as raw materials. * There is absolutely no unpleasant styrene odor during construction. * Low noise construction of less than 60 dB is possible with rotation construction. * Underwater construction is possible with rotation impact construction. Applications: * For reinforcement bars for renovation. * For earthquake reinforcement. * For steel frame base installation. * Guardrail installation. * Embankment heightening. * Steel frame base. * Support bracket installation. * Underwater construction. * Bridge pier reinforcement. Specifications: ●Outer diameter (mm): 13 ●Total length (mm): 83 ●Capacity (ml): 10 ●Bolts used (irregular steel bar): M12, (D13) ●Drill diameter (irregular steel bar) (mm): 14.5, (16) ●Drilling depth (mm): 100 ●Maximum tensile load (kN): 70 ●Long-term allowable tensile load (kN): 11.3 ●Short-term allowable tensile load (kN): 17.0 ●Rotational construction/rotary impact construction type Material/Finish: ●Non-styrene modified vinyl ester resin Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/m［［M2］］.
