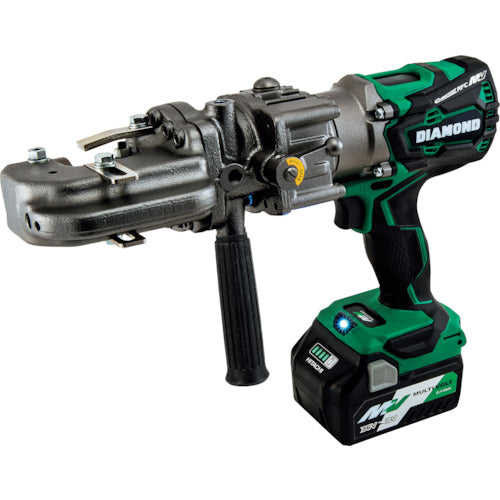

DIAMOND Cordless Puncher EPC-1525BLH 1 unit

Catalog number: EPC-1525BLH Features: *Using a lithium-ion 36V battery, the maximum number of holes per charge is 450. *The head part rotates 360 degrees, making it useful in places that are difficult to process. *Equipped with a position stopper mechanism. Uses: ● Drilling holes in metal Specifications: ● Maximum drilling capacity (mm) Stainless steel: t5 x φ15 ● Maximum drilling capacity (mm) Iron: t6 x φ15 ● Pocket size (mm): 25 ● Maximum drilling capacity (mm) Iron (equivalent to SS400): t6 x φ15 ● Depth (mm): 25 ● Hole diameter (mm): 15 ● Maximum drilling capacity (mm) Oblong hole: 11 x 16.5 ● Maximum round hole diameter (mm): φ15 ● Maximum oblong hole diameter (mm): 11 x 16.5 ● Maximum round hole diameter: φ15mm ● Maximum oblong hole diameter: 11 x 16.5mm ● Maximum plate thickness: SS400 equivalent: 6mm ● SUS304 equivalent: 5mm ● Power supply: Lithium-ion battery 36V ● Body dimensions: (L) 338 x (W) 85 x (H) 260mm ● Weight: 6.2kg (including battery) ● Depth: 25mm Set contents/accessories: ●Tool set ●Side handle ●Charger ●36V battery ●Standard punch and die 11Φ
