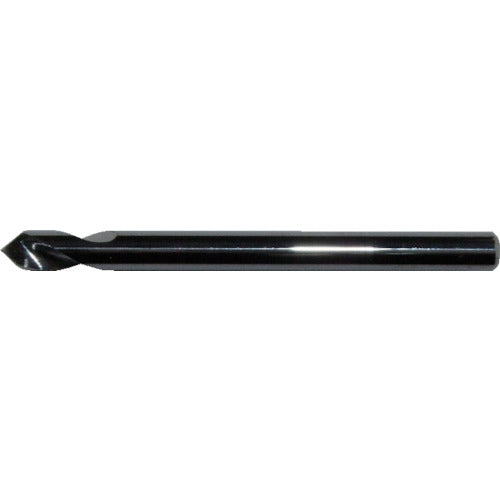

DIXI Carbide NC Center Drill, Shank Diameter 3mm, 1106-3.0, 1 piece

Catalog number: 1106-3.0 Features: ●Positioning and chamfering can be done in one process. ●High-precision positioning (center finding) Accurate positioning on curved and inclined surfaces, high-quality chamfering (countersinking) is possible. ●High speed and high feed are possible. ●Centering and chamfering are performed simultaneously before tapping pilot hole processing. Applications: ●Cutting materials: steel, alloy steel, stainless steel, cast iron, aluminum, copper, brass, plastic (nylon). Specifications: ●Shank diameter (mm): 3 ●Total length (mm): 38 ●Center hole angle (°): 90 ●Drill diameter (mm): 3 ●Surface treatment: Non-coated ●Blade shape: Single-edged ●Non-coated Material/Finish: ●Carbide alloy (K20)
