大同端子製造（株）

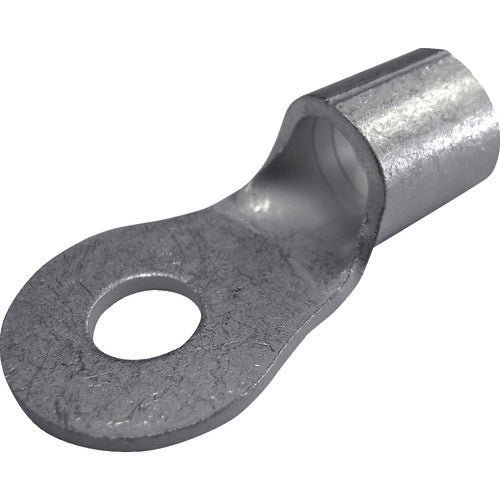

DST Bare Crimp Terminal Round Terminal R3.5-10 100 Pieces R3.5-10 1 Box
DST Bare Crimp Terminal Round Terminal R3.5-10 100 Pieces R3.5-10 1 Box
Regular price
¥1,505
Regular price
Sale price
¥1,505
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: R3.5-10 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.82-2.4 ● Wire clamping range Stranded wire (mm2): 2.63-4.6 ● Wire clamping range AWG: 12 ● External diameter (mm): 14.5 ● Stud diameter (mm): 10.5 ● Total length (mm): 25 ● Internal dimension (mm): 3 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
