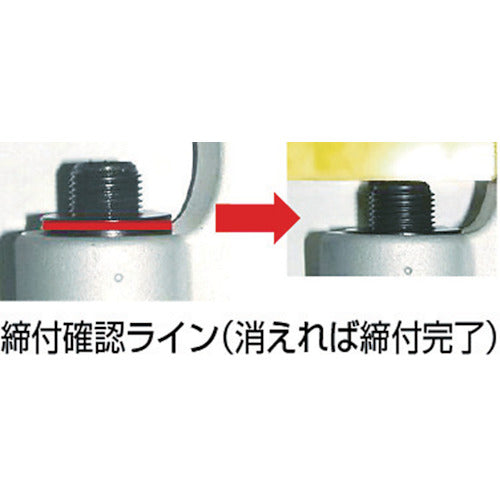

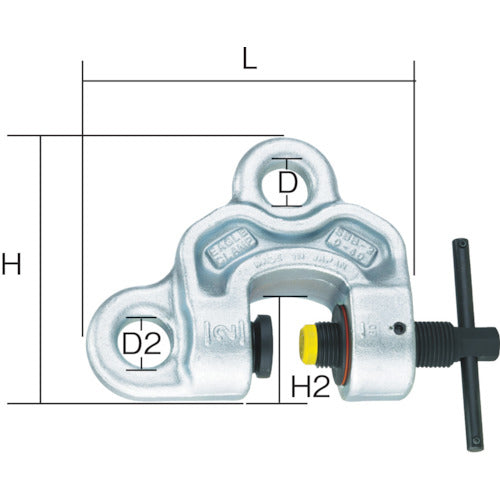

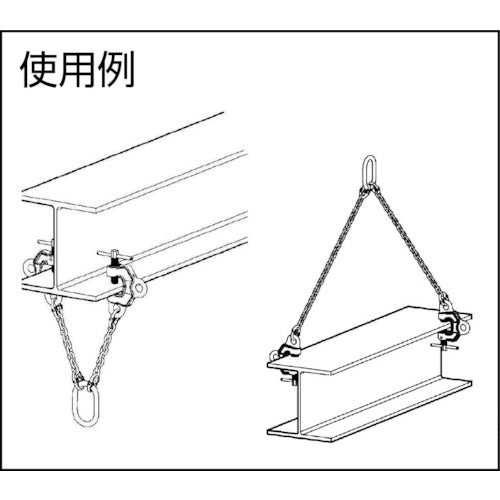

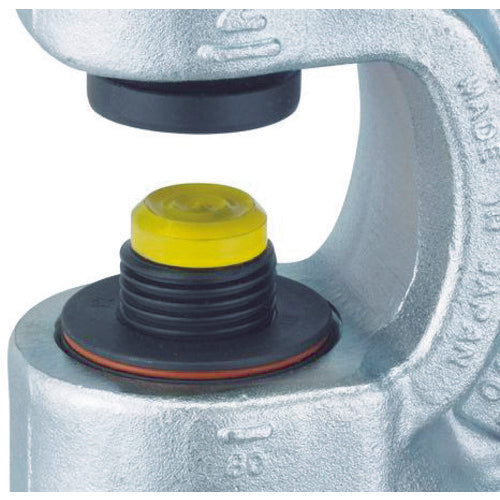

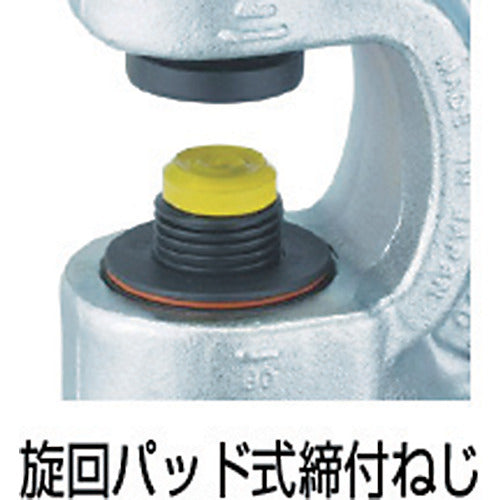

Catalog number: SBB-500-1-25 Features: ●The spherical jaws convert pulling forces in any direction into clamping forces, allowing for free lifting and pulling operations in all directions. ●The tightening status confirmation line allows you to check the tightening status of the screw at a glance. ●The adoption of a newly developed swivel pad type tightening screw has improved tightening efficiency. ●Twin shackle with free pulling direction, convenient for moving irregular objects ●The "twin shackle" with two shackle attachment points expands the range of uses. Applications: ●Lifting, hanging, inversion, pulling, replacing hanging pieces and installing chain blocks. ●For lifting, transporting, hanging, inversion, welding, assembly, construction, mounting, pressing, bending, hanging pieces, and pulling pieces. Specifications: ●Basic load capacity (t): 0.05-0.5 ●Clamping range (mm): 1-25 ●Dimensions (mm) D: 27 ●Dimensions (mm) D2: 27 ●Dimensions (mm) H: 112 ●Dimensions (mm) H2: 48 ●Dimensions (mm) L: 140 ●Maximum load capacity (t): 0.5 ●Load capacity (min-max) (kg): 50-500 ●Height (mm): 112 ●Width (mm): 140 ●Made in an ISO9001 certified factory ●Tip pad type tightening screw ●With tightening check line Caution: ●Always use with two or more points of suspension. ●Never hang loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
