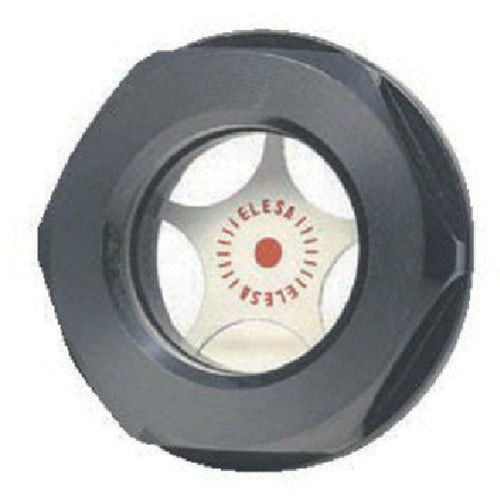

ELESA Star-shaped window FG-16N 1 piece

Catalog number: FG-16N Features: ●Star-shaped screw-in oil gauge. Specifications: ●Outer diameter (mm): 35 ●Thickness (mm): 18 ●Heat resistance temperature (℃): -30 to 100 ●Thread length (mm): 9.5 ●Thread dimensions: G3/4 ●Two-sided width dimensions (mm): 32 ●Thread-in type Materials/Finish: ●Body: Black polyamide ●Window: Special transparent polyamide (PA-T/AR) ●Level plate: Aluminum (A1050P) ●Oil seal: Nitrile rubber (NBR) Caution: ●Avoid using in water tanks as the resin will absorb water and expand.
