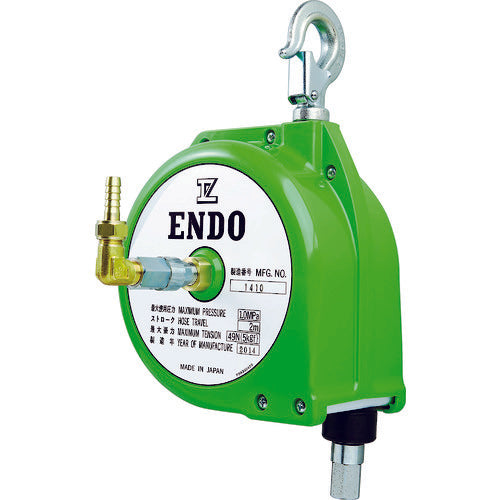

ENDO Air Tool Reel ATR-5 Hose Inner Diameter 10 x Outer Diameter 14mm ATR-5 1 unit

Catalog number: ATR-5 Features: ●The large hose inner diameter of φ10mm eliminates the lack of flow rate of air tools. ●The ratchet function allows you to stop the stroke midway. Applications: ●Combines a hose reel and balance function, making it ideal for hanging air tools and organizing hose piping Specifications: ●Inner diameter x outer diameter of hose (mm): 10 x 14 ●Total length of hose (m): 2 ●Primary side mounting: 3/8 Ostrich nipple ●Secondary side mounting: 3/8 female ●Total length of secondary side of hose (m): 2 ●Maximum operating pressure (MPa): 1 ●Operating pressure (MPa): 0.3 to 1.0 ●Width (mm): 205 ●Depth (mm): 240.5 ●Height (mm): 369 ●Outer diameter (mm): 205 ●Installation type: Hook hanging ●Stroke (m): 2 ●Inner diameter of hose (mm): 10 ●Operating pressure: 1.0MPa Materials/Finish: ●Body: ABS resin, hose: urethane
