(株)エンジニア

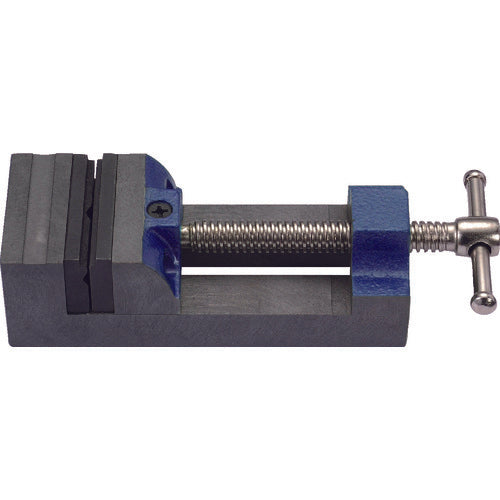

ENGINEER Yankee Vice TV-25 1 unit
ENGINEER Yankee Vice TV-25 1 unit
Regular price
¥9,696
Regular price
Sale price
¥9,696
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

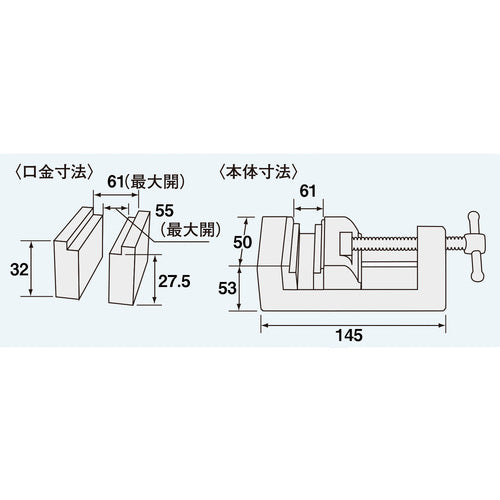

Catalogue number: TV-25 Features: ●Both sides and the back are machined at right angles, so it can be used horizontally or vertically. ●Comes with a special jaw that can clamp thin plates, round bars, square lumber, etc. ●Can be used as a flat jaw by turning the jaw over. Applications: ●A tool that clamps and holds objects firmly and continuously, for fixing workpieces. Specifications: ●Total length (mm): 139 ●Width (mm): 50 ●Height (mm): 53 ●Jaw width (mm): 50 ●Jaw opening (mm): 61 ●Jaw depth (mm): 32 ●Clamping force (kN): 3 ●Type: Yankee vise Material/Finish: ●Body: Cast iron ●Shaft, handle, jaw: Carbon steel
