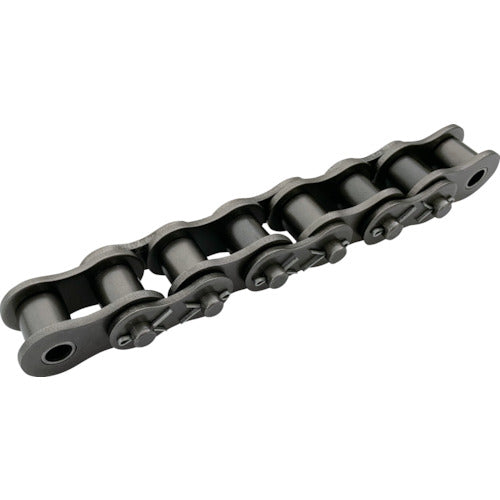

ENUMA EK100D Cotter Pin Type Roller Chain EK100D CP 96L DCJ 1 Piece

ENUMA EK100D Cotter Pin Type Roller Chain EK100D CP 96L DCJ 1 Piece

JAN：4571291784765 　
Bearings, drive equipment, transmission parts chain ENUMA Chain Mechatronics Parts Roller Chain
¥19,160
¥19,160
Sale Sold out
Shipping calculated at checkout.

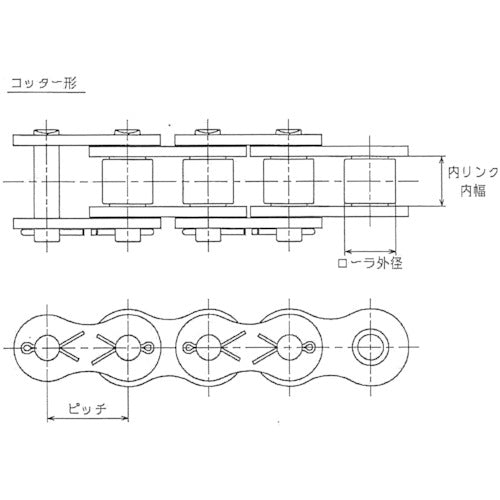

Catalogue number: EK100D CP 96L DCJ Features: ● Chain based on the Japanese Industrial Standard JIS. Applications: ● Power transmission and drive Specifications: ● Chain No.: 100 ● Number of unit links: 96 ● Pitch (mm): 31.75 ● Roller outer diameter (mm): 19.05 ● Inner link inner width (mm): 18.9 ● Tensile strength (kN): 117.7 ● Maximum allowable load (kN): 22.6 ● Maximum allowable tension (kN): 22.6 ● Average tensile strength (kN): 117.6 ● Length (m): 3 ● Type: Split pin ● Split pin type Material/Finish: ● Steel
View full details
