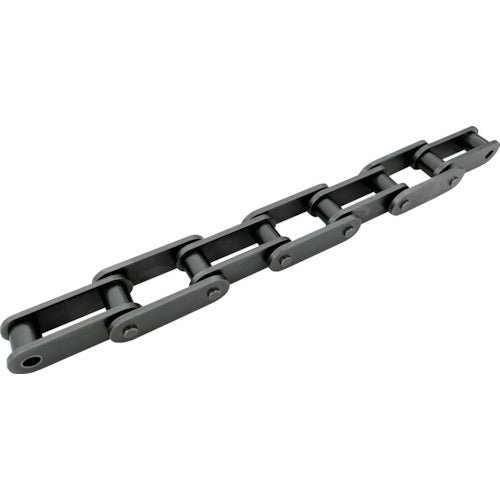

ENUMA EKC2062H-X Double Pitch Sealed Chain EKC2062H-X 80L DCKJ 1 piece

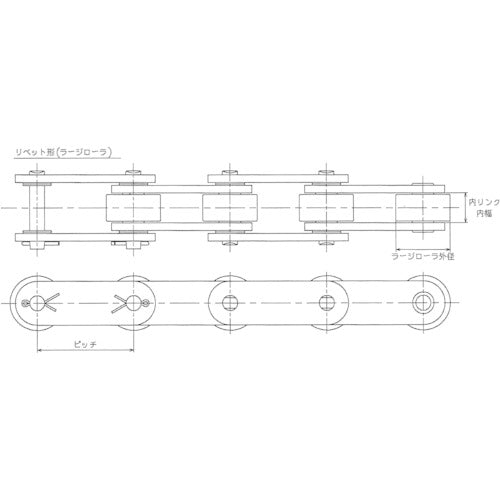

Catalog number: EKC2062H-X 80L DCKJ Features: ●Sealed chain that conforms to JIS A series and ANSI ISO A series chains. Applications: ●Power transmission and drive Specifications: ●Chain No.: 2060 ●Number of unit links: 80 ●Pitch (mm): 38.1 ●Roller outer diameter (mm): 22.23 ●Inner link inner width (mm): 22.23 ●Tensile strength (kN): 44.1 ●Maximum allowable load (kN): 8.8 ●Maximum allowable tension (kN): 8.8 ●Average tensile strength (kN): 44.1 ●Length (m): 3 ●Type: Split pin ●Roller shape: Large ●Rivet shape ●Double pitch shape ●Type: Split pin Material/Finish: ●Steel
