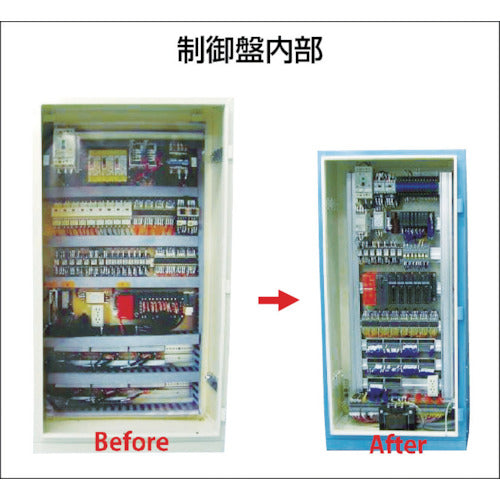

Catalog number: JD-DR1000 Features: ●Control panels can be made smaller. The number of cables used can be reduced. ●Cables are stored behind the DIN rail, making cable ducts unnecessary. ●With no cable ducts, heat convection occurs, allowing the specifications of the control panel cooler to be reduced. ●Fixed with a clamper during operation, and removed during maintenance to tilt the DIN rail to access the inside. ●The DIN rail can be tilted 45 degrees. Applications: ●Ideal for making control panels smaller. Specifications: ●Width (mm): 51.2 ●Height (mm): 23 ●Length (mm): 1000 ●35mm DIN rail with hinges (1m) ●Rail depth can be selected at the base (40mm, 60mm) ●Rail is fixed with screws using a clamper ●System static load is 20kg Material/Finish: ●Aluminum (A60635-T5)
