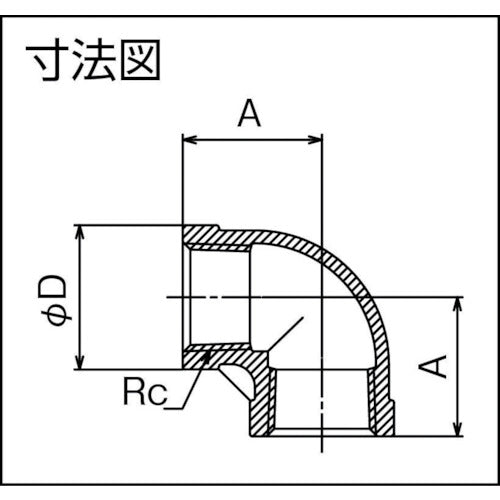

Catalog number: VL-16 Features: ●Compatible with stainless steel piping. ●This product is an upgrade over conventional threaded fittings and has been developed to be easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●A (mm): 57 ●D (mm): 73 ●Applicable standards: Complies with JIS B2301 and JIS B0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS13A)
