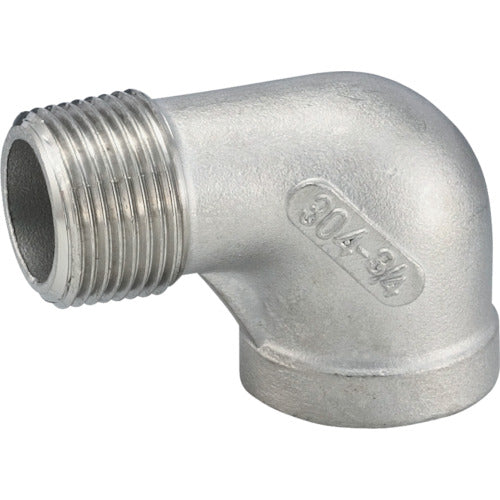

FLOBAL Street Elbow (SCS13A) 04100301 VSL-01 1 piece

Catalog number: VSL-01 Features: ● To meet the increasing demand for stainless steel piping ● A further upgrade of the conventional threaded fittings, with a wide range of sizes available, developed as a fitting that is easier to use. Applications: ● For steam, air, gas, and oil. ● For steam, air, gas, and oil. Specifications: ● Nominal diameter A: 6 ● Nominal diameter B: 1/8 ● A (mm): 17 ● B (mm): 28 ● D (mm): 15.5 ● Applicable standards: Complies with JIS B2301 and JIS B0203 ● Maximum operating pressure: Steam, air, gas, and oil below 300°C 1.0 MPa, still water below 120°C 2.0 MPa Material/Finish: ● Stainless steel (SCS13A)
